Slim Round 10W Microprismatic Selectable White LED Downlight Cutout 110mm LIFUD Driver - White

Technical Specifications

• LED Features

  • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle120º
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature2700K - 4000K - 6000K
  • Low-glare products offer more comfortable lighting, suitable for extended use.
    Glare FactorUGR <17

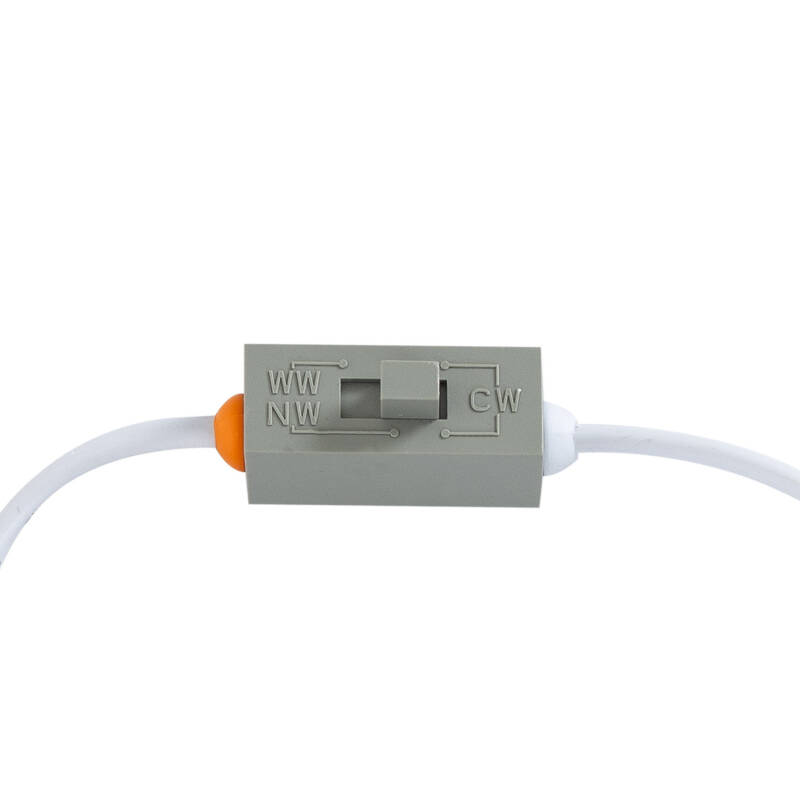

  • Light ColourSelectable (Warm - Cool - Daylight)
  • Lumen950 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency95 lm/W
  • Number of LEDs40
  • Power Factor0.9

• Electrical Features

  • DimmableNo
  • Electrical Insulation ClassII
  • Frequency50-60 Hz
  • Light SourceSMD2835
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage85 V - 265 V
  • Replaceable Light SourceNo
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Wattage10 W

• Materials and Finishes

  • ColourWhite
  • Fitting MaterialPC, Aluminium
  • IncludesDriver
  • Type Of LensOpaal

• Mechanical Features

  • Ability to move or rotate the spotlight to direct the light as desired.
    DirectionalNo
  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK05
  • InstallationRecessed
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP40
  • LocationIndoor
  • ShapeCircular

• Product Information

  • BrandLyco
  • CertificatesCE, RoHS, TÜV
  • Guarantee3 years
  • Product SeriesSuperSlim Prisma

• Product Data

  • Product FormatFixed Downlight
  • Product typeLED Downlight

• Driver Information

  • Driver Intensity200 mA
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
    Driver Tension25 V-42 V
