Dimensions
Height120 mm
Width125 mm
Depth30 mm
Certificates and Stamps
Technical Specifications
Technical Information
Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
Beam Angle110º
ColourWhite
Defines the light tone, from warm white to cool white, measured in Kelvin (K).
Colour Temperature4500K
Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
Detection Range120 °
Maximum range at which a sensor can detect motion.
Detention Range Metres10 m
DimmableNo
Electrical Insulation ClassI
Fitting MaterialAluminium
Frequency50-60 Hz
Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
IK ProtectionIK04
InstallationSurface
The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
IP RatingIP65
Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
LED Performance120 lm/W
Light ColourNeutral White
Lumen1000 lm
Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Luminous Efficiency100 lm/W
Power Factor0.83
SensorPIR
Sensor TypePIR
Voltage level required for the product to function correctly.
Voltage Range220-240V AC
Wattage10 W
Product Information
Coastal ResistantNo
Light SourceSMD2835
LocationOutdoor
Minimum distance to the coastNot suitable within 15 miles of the coast
Product FormatPIR Floodlight
Product TypeFloodlights
Replaceable Light SourceNo
Type Of LensTransparent
Product Data
CertificatesCE, RoHS, UKCA
Guarantee3 years
Product SeriesLite
Key Features

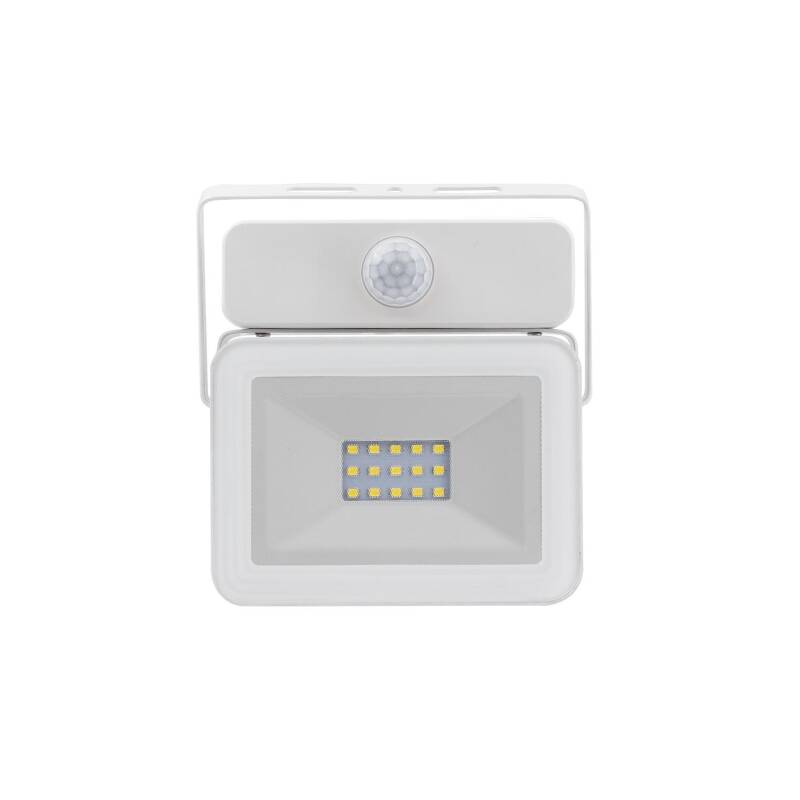

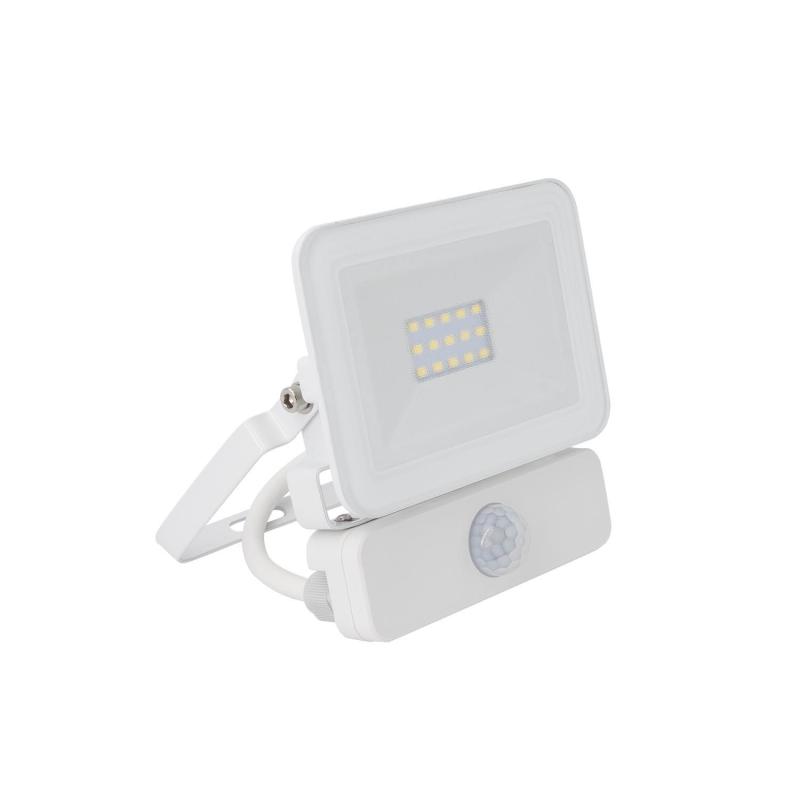

LED floodlight in a white finish with PIR movement sensor
Colour: White, Clear
Material: Aluminium
Wattage: 10W equivalent to 100W halogen.
Light Colour: Cool White (4500K).
Average Life Expectancy: 40,000 hours.
Guarantee: 3 years guarantee.
Mounting: Suitable for Upwards mounting. Recommended mounting height of 2 - 2.5 metres.
Dimmable: Non-Dimmable.
IP Rating: IP65, Class I
Detection: PIR Movement Sensor has up to 6 meters and 120° detection range. No manual override.
