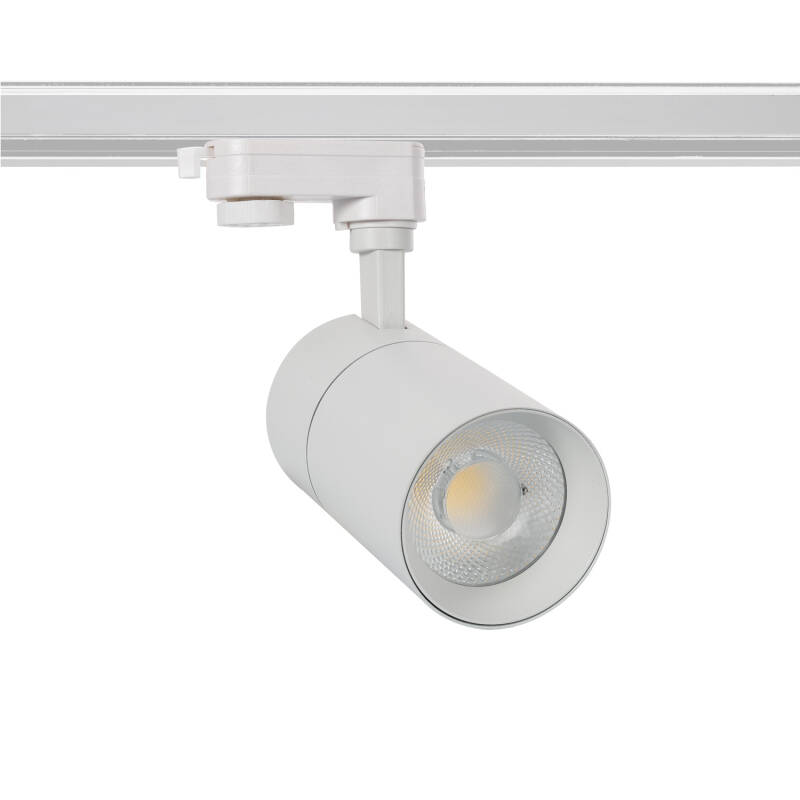

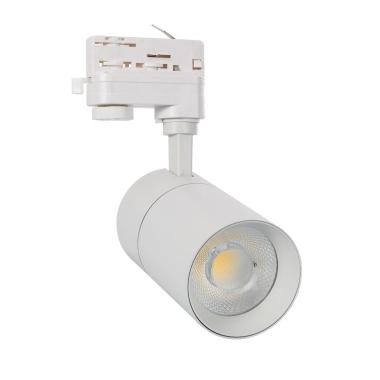

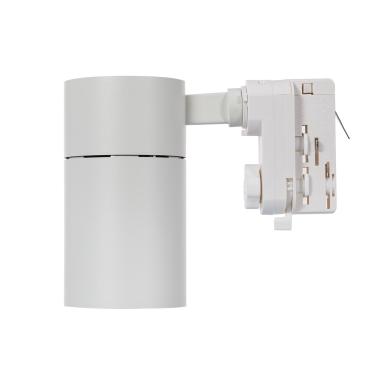

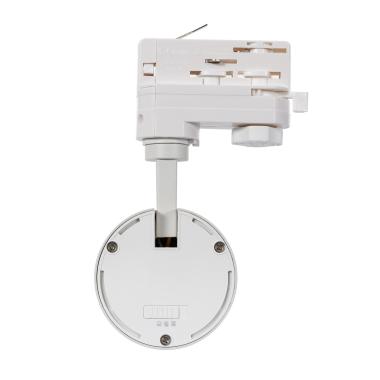

Three Circuit 20W Selectable CCT Dimmable LED Track Light Mallet
Ref. Online Lighting: E7764C
Colour White
Was £32.99
£26.39
VAT included
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast? Check our delivery cut-off times below:
Check our delivery cut-off times below: Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Online Lighting we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth223 mm
- Diameter76 mm
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Frequency50-60 Hz
- Light SourceCOB
- Nominal Voltage190 V - 260 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceYes
- Type Of DimmingTRIAC
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage20 W
LED Features
- Beam Angle36ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature3000K - 4000K - 6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <15Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourSelectable (Warm - Cool - Daylight)
- Lumen2000 lm
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.9
Mechanical Features
- DirectionalYesAbility to move or rotate the spotlight to direct the light as desired.
- InstallationTrack
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Type Of TrackThree Phase
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesMallet
Product Data
- Product FormatTrack Spotlight
- Product typeTrack spotlights
Materials and Finishes
- ColourWhite
- Fitting MaterialPC, Aluminium
Key Features
- LED track light with selectable CCT: Warm White, Neutral White, or Cool White, delivering approx. 2000 lumens with CRI ≥80. Features a 36° beam for precise accent lighting and UGR15 anti-glare visual comfort. Constructed from aluminium with efficient thermal dissipation and supplied with a TRIAC dimmable driver (190–260V AC). Designed for three-phase tracks with L1, L2, L3 selector. Suitable for shops, supermarkets, galleries, exhibitions, and restaurants.
- Colour: White
- Material: Aluminium, Polycarbonate
- Wattage: 20W.
- Light Colour: CCT (3000K / 4000K / 6500K).
- Track Range: Part of the Lyco 3 circuit track range.
- Average Life Expectancy: 30,000 hours.
- Guarantee: 3 years guarantee.
- Dimmable: Dimmable with LED compatible dimmer switch.
- IP Rating: IP20, Class I
- Dimensions:
Overall - H 80 x W 76mm
