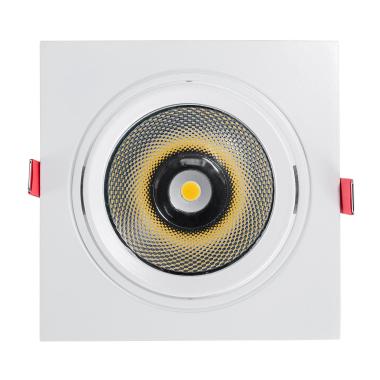

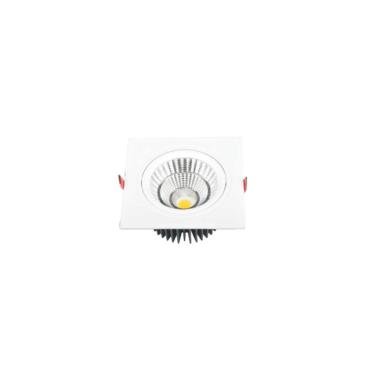

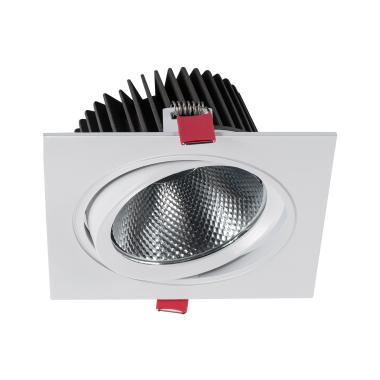

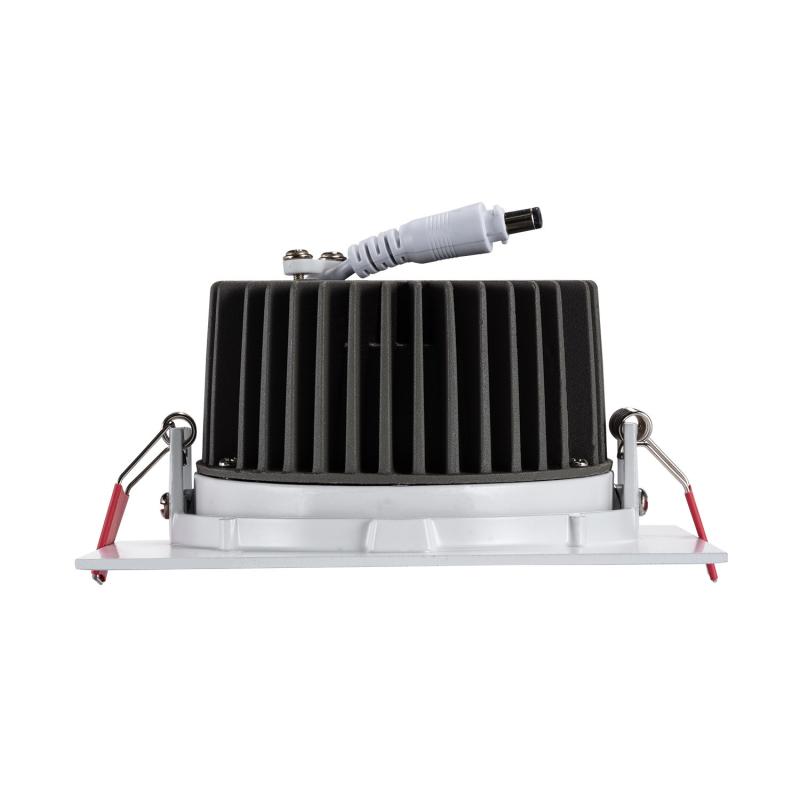

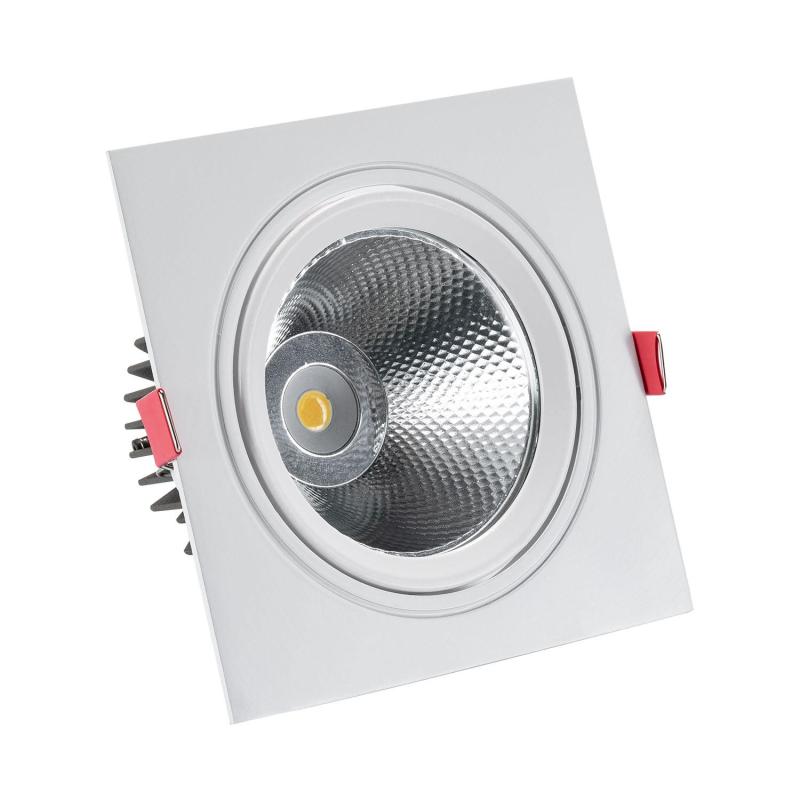

Square 15W Warm White COB LED Adjustable Downlight New Madison Cutout 115mm - White
Ref. Online Lighting: E1976
Colour Temperature Warm White 3000K
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Online Lighting we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth140 mm
- Width140 mm
- Height70 mm
- Cut Out DimensionsØ115 mm
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSANAN COB
- Nominal Voltage85 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage15 W
LED Features
- Beam Angle24ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature3000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <19Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourWarm White
- Lumen1350 lm
- Luminous Efficiency90 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Mechanical Features
- DirectionalYesAbility to move or rotate the spotlight to direct the light as desired.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeSquare
Product Data
- Product FormatAdjustable Downlight
- Product typeLED Downlight
Materials and Finishes
- ColourWhite / Silver
- Fitting MaterialAluminium
- IncludesDriver
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee5 years
Driver Information
- Driver Intensity280 mA-290 mA
- Driver Tension42 V-70 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Key Features
- LED adjustable ceiling downlight in a white finish
- Colour: White
- Material: Aluminium
- Wattage: 15W equivalent to 150W halogen.
- Light Colour: Warm White (3000K).
- Average Life Expectancy: 50,000 hours.
- Guarantee: 3 years guarantee.
- Dimmable: Non-Dimmable.
- IP Rating: IP20, Class II
- Fire Rating: No.
- Dimensions:
Overall - H 70 x W 140 x D 140mm
Cut Out - Dia 115mm
